Populating Next Right Pointers In Each Node

PROBLEM

You are given a perfect binary tree where all leaves are on the same level, and every parent has two children. The binary tree has the following definition:

struct Node {
  int val;
  Node *left;
  Node *right;
  Node *next;
}

Populate each next pointer to point to its next right node. If there is no next right node, the next pointer should be set to NULL.

Initially, all next pointers are set to NULL.

Example1

=Input=: root = [1,2,3,4,5,6,7]
=Output=: [1,#,2,3,#,4,5,6,7,#]

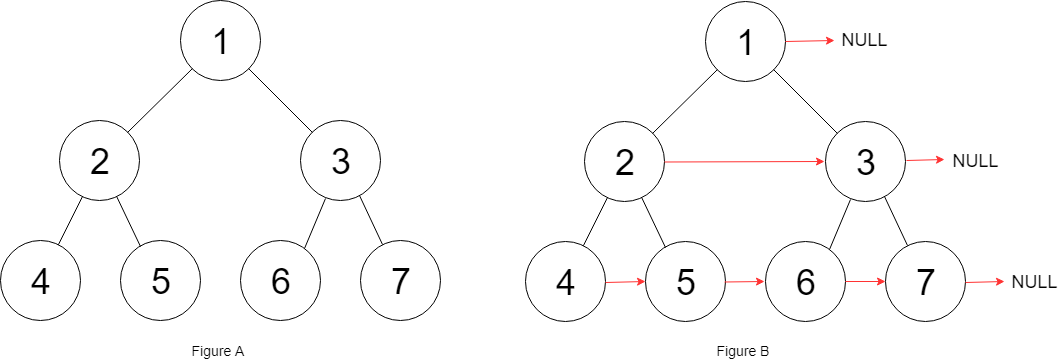

Explanation: Given the above perfect binary tree (Figure A), your function should populate each next pointer to point to its next right node, just like in Figure B. The serialized output is in level order as connected by the next pointers, with '#' signifying the end of each level.

Example2

=Input=: root = []
=Output= []

SOLVING

DFS

We’ll use Depth-first Search method

Steps

  • If root equal to NULL return
  • Left’s next equal Right If Left and Right are different of NULL
  • Your edge (Right or Left if NULL) next equal to current node’s next Left or Right if NULL
  • Recursive on the Left node
  • Recursive on the Right node

Code

class Solution {
public:
  Node *connect(Node *root) {
    if (!root)
      return nullptr;

    Node *edge = root->right ? root->right : root->left;
    if (root->left && root->right)
      root->left->next = root->right;

    if (root->next)
      if (root->next->left)
	edge->next = root->next->left;
      else if (root->next->right)
	edge->next = root->next->right;

    connect(root->left);
    connect(root->right);
    return root;
  }
};

BFS

we’ll use Breadth-first Search Search method

Steps

  • Return if root equal NULL
  • Push the root to the queue
  • While queue is not empty:
    • Initialize the NextNode to NULL
    • For each element on the queue:
      • Current equal pop on the queue
      • Current next equal NextNode
      • NextNode equal Current
      • If Current has children push to the queue the Right and/or Left child (order is very important)
  • return the root

Code

class Solution {
public:
  Node *connect(Node *root) {
    if (!root)
      return nullptr;

    queue<Node *> q;
    q.push(root);
    while (size(q)) {
      Node *nextNode = nullptr;
      for (int i = size(q); i; i--) {
	Node *cur = q.front();
	q.pop();
	cur->next = nextNode;
	nextNode = cur;
	if (cur->right)
	  q.push(cur->right);
	if (cur->left)
	  q.push(cur->left);
      }
    }
    return root;
  }
};
